A highly effective media for removing hydrogen sulfide gas (H2S) found in wastewater treatement applications. Porous pellets containing powdered activated carbon, alumina and other binders, impregnated with chemicals to enhance the capacity for removal of hydrogen sulfide. The gases are removed by a means of adsorption, absorption and chemical reaction. The gases are trapped within the pellets, where a chemical reaction changes the gases into a harmless compound, eliminating the possibility of desorption.

Wager’s 1200 Odor Control Roof Vent is designed for rooftop ventilation as a means to equalize the pressure required to keep steady flows of wastewater in toilets and sinks. Odor may become a problem when the resulting H2S gas from a septic system flows to ground levels by means of wind currents or temperature inversions.

The 1800 Odor Control Vent Valve connects to a candy cane style pipe, and is designed to allow for ventilation in the open position. The valve body may be easily disassembled with two quick release lockable metal latches. The interior of the body contains a canister filled with odor media.

The 1850 is a combined odor control vent valve, with the additional feature of a ball check to prevent water from submerging the media bed, as well as prevent inflow of flood waters into the lines.The 1850 connects to a candy cane style pipe. It is designed to allow for venting in the open position. The interior of the body contains a canister filled with 12 lbs of odor media.

The Wager 3000 Manhole Scrubber effectively removes offensive odors emanating from street-level sewer manholes. The collar of the scrubber rests just below the manhole cover. Odors enter thru the bottom of the unit, and flow upwards thru an odor canister filled with 50 LBS of media designed to remove a variety of odor causing gases such as H2S, Mercaptians, and VOC’S by means of chemical absorption.

The 3100-V is designed for combination Vacuum Air Release Valves. The unit connects directly to an air release valve for odor control, with the added benefit of preventing corrosion in the manhole or vault from the H2S gas. Two air intake valves allow for up to 400 CFM of fresh air to intake directly into the lines without any restrictions from the media bed. This assures continued airflow during pumping sequences. The 3100-V is constructed from aluminum, and is epoxy coated for protection from harsh environments. A canister containing 30 pounds of odor controlling media is located in the interior of the unit.

he water separator directly connects to both the air release valve and to the 3100 odor control valve. Air enters the water separator and a baffle directs the airflow to the bottom of the unit where moisture in the air can accumulate. Once the accumulating water reaches the level of a float in the unit, a drain will open and release the water into the wet well. The dry air proceeds to the top of the water separator, and enters in to the 3100 where the H2S gas is scrubbed with 30 pounds of odor controlling media.

The 2050-SA is designed with a side access to allow for connection where a vent pipe is not available. It is constructed from aluminum, and is epoxy coated grass green.This unit contains 50 LBS (23kg) of odor controlling media. It includes two fresh air intake valves, capable of allowing up to 300 CFM of fresh air per valve.

The 2050 odor control sewer valve is an elongated vertical design to accommodate a deodorizing feature that helps to suppress sewer gas odors. Perfect for residential or commercial locations where complaints regarding odor have become an issue.The 2050 is constructed from aluminum, and is epoxy coated grass green so that it fits nicely into the surrounding environment. It has 4 louvered vents to allow for maximum airflow of deodorized air. H2S gas is directed thru a canister containing 50 lbs (23kg) of odor controlling media.

The 2050-100 Odor Control Valve is designed to allow for ventilation and odor control at lift stations, wet wells, vaults containing ARV’s and forced mains flowing into gravity fed lines. The valve is constructed from aluminum, and is epoxy coated for protection from the harsh outside environment Each valve contains (2) 50lb (23kg) canisters of Wager odor scrubbing media with Media Life indicator pellets. A mist eliminator pad is incorporated into the unit to prevent damage to the media bed from moisture.

The 2050-100 Odor Control Valve is designed to allow for ventilation and odor control at lift stations, wet wells, vaults containing ARV’s and forced mains flowing into gravity fed lines. The valve is constructed from aluminum, and is epoxy coated for protection from the harsh outside environment Each valve contains (2) 50lb (23kg) canisters of Wager odor scrubbing media with Media Life indicator pellets. A mist eliminator pad is incorporated into the unit to prevent damage to the media bed from moisture.

The 2050 odor control sewer valve is an elongated vertical design to accommodate a deodorizing feature that helps to suppress sewer gas odors. Perfect for residential or commercial locations where complaints regarding odor have become an issue. The 2050 is constructed from aluminum and is epoxy coated grass green so that it fits nicely into the surrounding environment. It has 4 louvered vents to allow for maximum airflow of deodorized air. H2S gas is directed thru a canister containing 50 lbs (23kg) of odor controlling media.

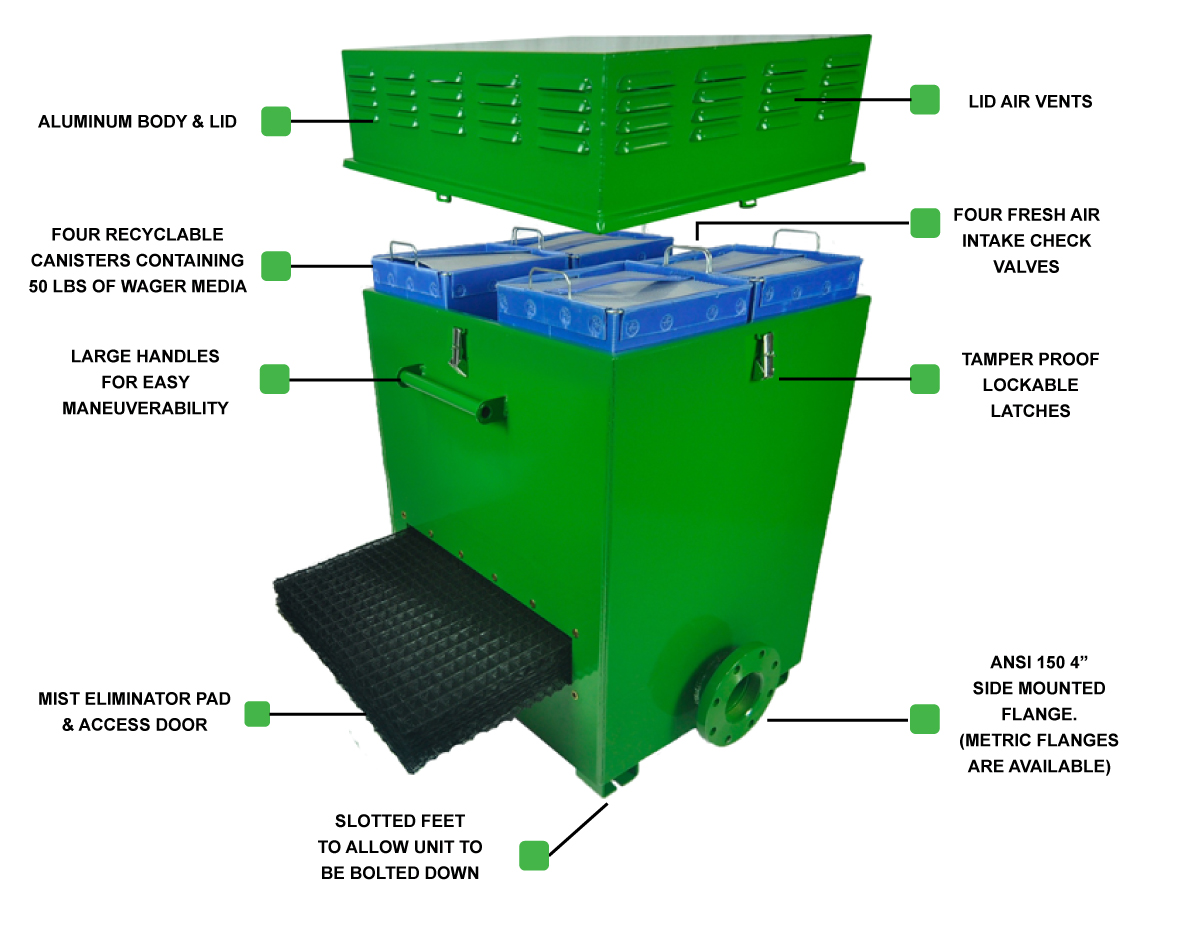

The 2050-450-i Odor Control Valve is designed to allow for ventilation and odor control at lift stations, wet wells, vaults containing ARV’s and forced mains flowing into gravity fed lines. The valve is constructed from aluminum, and is epoxy coated for protection from the harsh outside environment.Each valve contains (9) 50lb canisters of media to allow for odor scrubbing where concentrations of H2S gas and accompanying CFM are both very high.
